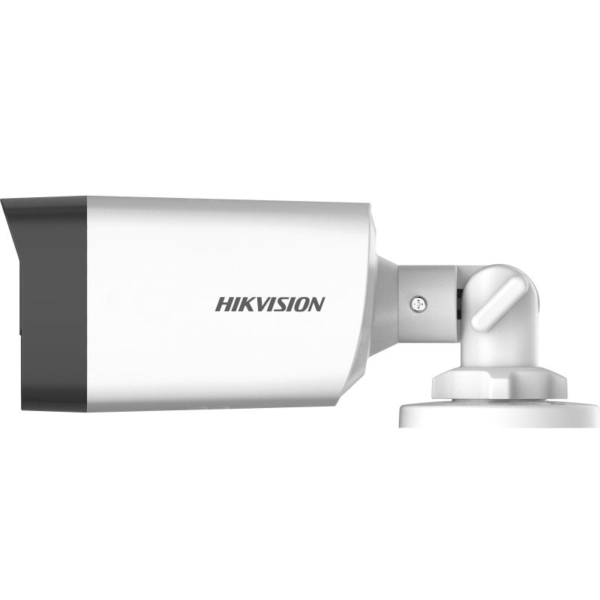

Name: 5 MP Fixed Bullet Camera 2.8MM - My Kleine Winkel
SKU: DS-2CE17H0T-IT1F_C
Price: 635.00 ZAR
Availability: InStock

Description

Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142° 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
Noise ReductionYes
White BalanceAuto/Manual
AGCYes

Interface
Video OutputTVI/AHD/CVI/CVBS

General
MaterialFront Cover: Metal Main Body: Plastic
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
WeightApprox. 330 g (0.73 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
ConsumptionMax. 4.3 W
IR RangeUp to 30 m

Approval
ProtectionIP67

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142° 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

Noise Reduction

Yes

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output

TVI/AHD/CVI/CVBS

General

Material

Front Cover: Metal Main Body: Plastic

Dimension

78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)

Weight

Approx. 330 g (0.73 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

Consumption

Max. 4.3 W

IR Range

Up to 30 m

Approval

Protection

IP67

Camera

Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142° 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
Lens MountM12


Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
Noise ReductionYes
White BalanceAuto/Manual
AGCYes

Interface

Video OutputTVI/AHD/CVI/CVBS

General

MaterialFront Cover: Metal Main Body: Plastic
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
WeightApprox. 330 g (0.73 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
ConsumptionMax. 4.3 W
IR RangeUp to 30 m

Approval

ProtectionIP67
