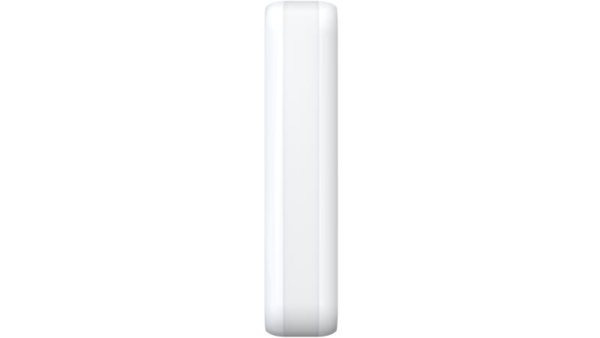

Wireless PIR AM Curtain Detector

  • Slim design for window frame installation
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Directional detection support
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission
View Less
View more
81
  • people viewed this product today!
  • 30-day money back guarantee

R945.00

Description

Specification

  • Detection Performance
  • Detection MethodPassive Infrared
  • Detection RangeWall mount: 10 m Ceiling mount: 5 m
  • Detection Angle5°
  • Detection Zones32
  • Detectable Speed0.3～2m/s
  • SensitivityAuto;Pet
  • White Light Filter6500lux
  • Pet ImmunityWall mount: 12 kg Ceiling mount: None
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Anti-maskingSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Directional DetectionSupport
  • Interface
  • Power SwitchPower up enrolling
  • LED IndicatorBlue (alarm), green+orange (mask)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
  • Power SupplyBattery powered
  • Battery TypeCR123A × 2
  • Typical Voltage3V
  • General
  • Operation Temperature-25°C to 60°C (-13°F to 140°F)
  • Storage Temperature-25°C to 60°C (-13°F to 140°F)
  • Operation Humidity10% to 90%
  • IP RateIP65
  • Dimension(WxHxD)29.2 mm × 134.4 mm × 39.5 mm
  • Weight118.5 g
  • Mounting Height2 m to 3.5 m
  • Mounting MethodWall;Ceiling
  • Application ScenarioIndoor, outdoor
  • BracketL-shaped adapter included

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Passive Infrared
Detection Range
Wall mount: 10 m Ceiling mount: 5 m
Detection Angle
5°
Detection Zones
32
Detectable Speed
0.3～2m/s
Sensitivity
Auto;Pet
White Light Filter
6500lux
Pet Immunity
Wall mount: 12 kg Ceiling mount: None
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Anti-masking
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Directional Detection
Support
Interface
Power Switch
Power up enrolling
LED Indicator
Blue (alarm), green+orange (mask)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
Power Supply
Battery powered
Battery Type
CR123A × 2
Typical Voltage
3V
General
Operation Temperature
-25°C to 60°C (-13°F to 140°F)
Storage Temperature
-25°C to 60°C (-13°F to 140°F)
Operation Humidity
10% to 90%
IP Rate
IP65
Dimension(WxHxD)
29.2 mm × 134.4 mm × 39.5 mm
Weight
118.5 g
Mounting Height
2 m to 3.5 m
Mounting Method
Wall;Ceiling
Application Scenario
Indoor, outdoor
Bracket
L-shaped adapter included
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Specification
Detection Performance
  • Detection MethodPassive Infrared
  • Detection RangeWall mount: 10 m Ceiling mount: 5 m
  • Detection Angle5°
  • Detection Zones32
  • Detectable Speed0.3～2m/s
  • SensitivityAuto;Pet
  • White Light Filter6500lux
  • Pet ImmunityWall mount: 12 kg Ceiling mount: None
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Anti-maskingSupport
Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Directional DetectionSupport
Interface
  • Power SwitchPower up enrolling
  • LED IndicatorBlue (alarm), green+orange (mask)
Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
  • Standard Battery LifeUp to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
  • Power SupplyBattery powered
  • Battery TypeCR123A × 2
  • Typical Voltage3V
General
  • Operation Temperature-25°C to 60°C (-13°F to 140°F)
  • Storage Temperature-25°C to 60°C (-13°F to 140°F)
  • Operation Humidity10% to 90%
  • IP RateIP65
  • Dimension(WxHxD)29.2 mm × 134.4 mm × 39.5 mm
  • Weight118.5 g
  • Mounting Height2 m to 3.5 m
  • Mounting MethodWall;Ceiling
  • Application ScenarioIndoor, outdoor
  • BracketL-shaped adapter included

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
