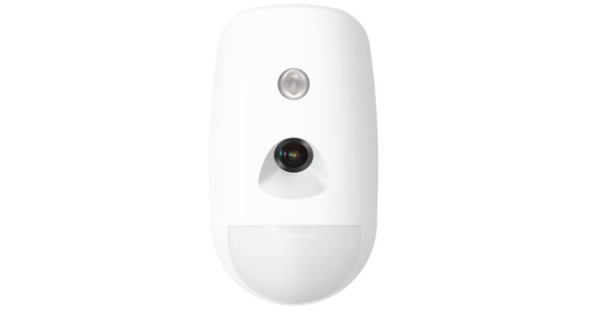

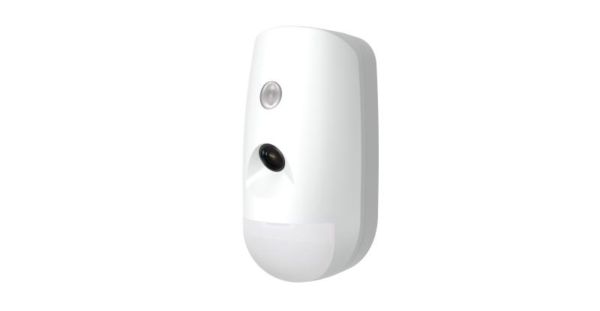

Wired PIR-Camera Detector

  • Detection range: 12m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
  • Polarizing IR lens design for more uniform night illumination and excellent night shots
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
View Less
View more
76
  • people viewed this product today!
  • 30-day money back guarantee

R1,855.00

Description

Specification

  • Detection Performance
  • Detection MethodPassive Infrared;Video Verification
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • SensitivityHigh;Auto;Pet
  • Pet Immunity30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Video
  • Field Angle109°(H), 60°(V)
  • Image TypeJPEG
  • Resolusion1920*1080;1280*720;640*480
  • Fill LightInfrared Light
  • Fill Range12m
  • Day/Night SwitchColor/Black & White
  • Interface
  • Alarm OutputHigh Speed Bus
  • LED IndicatorBlue(Alarm)
  • Transmission
  • Transmission TechnologySpeed-X Bus
  • Transmission MethodWired
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1Km
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • Power ConsumptionMaximum current：35mA @12VDC Quiescent current：0.1A@12VDC
  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)73mm × 130.5mm × 56.7mm
  • Weight195g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional Wall & Ceiling Accessory

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Passive Infrared;Video Verification
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3～2m/s
Sensitivity
High;Auto;Pet
Pet Immunity
30Kg
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Video
Field Angle
109°(H), 60°(V)
Image Type
JPEG
Resolusion
1920*1080;1280*720;640*480
Fill Light
Infrared Light
Fill Range
12m
Day/Night Switch
Color/Black & White
Interface
Alarm Output
High Speed Bus
LED Indicator
Blue(Alarm)
Transmission
Transmission Technology
Speed-X Bus
Transmission Method
Wired
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1Km
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
9 to 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current：35mA @12VDC Quiescent current：0.1A@12VDC
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
73mm × 130.5mm × 56.7mm
Weight
195g
Mounting Height
1.8 to 2.4m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional Wall & Ceiling Accessory
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Specification
Detection Performance
  • Detection MethodPassive Infrared;Video Verification
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • SensitivityHigh;Auto;Pet
  • Pet Immunity30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
Video
  • Field Angle109°(H), 60°(V)
  • Image TypeJPEG
  • Resolusion1920*1080;1280*720;640*480
  • Fill LightInfrared Light
  • Fill Range12m
  • Day/Night SwitchColor/Black & White
Interface
  • Alarm OutputHigh Speed Bus
  • LED IndicatorBlue(Alarm)
Transmission
  • Transmission TechnologySpeed-X Bus
  • Transmission MethodWired
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1Km
  • Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • Power ConsumptionMaximum current：35mA @12VDC Quiescent current：0.1A@12VDC
General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)73mm × 130.5mm × 56.7mm
  • Weight195g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional Wall & Ceiling Accessory

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
