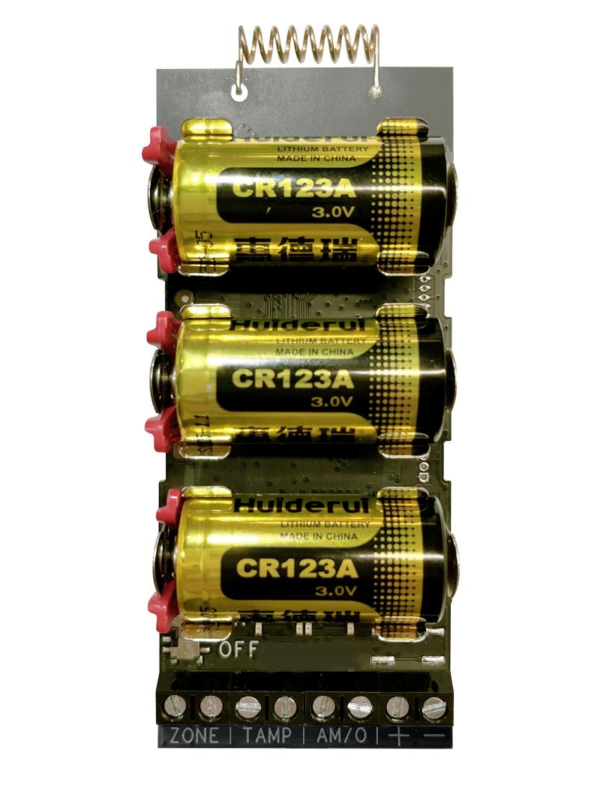

Single Input Transmitter

  • Small size design, which can be put into wired detector easily
  • 868MHz two-way wireless communication
  • LED display, show the real status of device
  • With one tamper input and one PGM, can be used as zone input or alarm outpout
  • With 3.3V voltage output, can be used to power up external wired detector
  • Detection of device removal by accelerometer
View Less
View more
58
  • people viewed this product today!
  • 30-day money back guarantee

R510.00

Description

Specification

  • Hardware features
  • Serial port1
  • Power switch1
  • Alarm input1 Alarm, 1 Tamper
  • Alarm output1 PGM, AM/Output
  • 3.3v Output1, up to 10mA
  • Electrical characteristics
  • Power supply3 CR123
  • Operation humidity10% to 90%
  • Operation temperature–10°C to 55°C
  • Power consumptionQuiescent current: 40.29 uA Max current: 47.85 mA Voltage: 3 VDC
  • Battery life spanUp to 5 years (standby time)
  • Wireless transmission
  • RF frequency868 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1700 m
  • Display
  • Indicator3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
  • General
  • Installation methodPut inside wireless ready detector
  • Dimension(WxHxD)102 mm × 41 mm × 20 mm
  • Weight35 g (without battery), 90 g (with battery)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware features
Serial port
1
Power switch
1
Alarm input
1 Alarm, 1 Tamper
Alarm output
1 PGM, AM/Output
3.3v Output
1, up to 10mA
Electrical characteristics
Power supply
3 CR123
Operation humidity
10% to 90%
Operation temperature
–10°C to 55°C
Power consumption
Quiescent current: 40.29 uA Max current: 47.85 mA Voltage: 3 VDC
Battery life span
Up to 5 years (standby time)
Wireless transmission
RF frequency
868 MHz
RF method
Two-way communication
RF modulation
2GFSK
RF distance
1700 m
Display
Indicator
3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
General
Installation method
Put inside wireless ready detector
Dimension(WxHxD)
102 mm × 41 mm × 20 mm
Weight
35 g (without battery), 90 g (with battery)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Specification
Hardware features
  • Serial port1
  • Power switch1
  • Alarm input1 Alarm, 1 Tamper
  • Alarm output1 PGM, AM/Output
  • 3.3v Output1, up to 10mA
Electrical characteristics
  • Power supply3 CR123
  • Operation humidity10% to 90%
  • Operation temperature–10°C to 55°C
  • Power consumptionQuiescent current: 40.29 uA Max current: 47.85 mA Voltage: 3 VDC
  • Battery life spanUp to 5 years (standby time)
Wireless transmission
  • RF frequency868 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1700 m
Display
  • Indicator3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
General
  • Installation methodPut inside wireless ready detector
  • Dimension(WxHxD)102 mm × 41 mm × 20 mm
  • Weight35 g (without battery), 90 g (with battery)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
