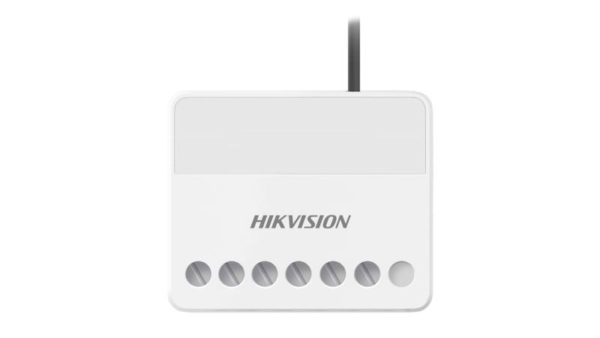

Relay Module

  • 868 MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show status of device and replay on/off display
  • Small case design, which can be put into hiding places easily
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events
  • An alarm input for tamper, NO, NC
View Less
View more
88
  • people viewed this product today!
  • 30-day money back guarantee

R570.00

Description

Specification

  • Software features
  • Scenario settingBy alarm, by operation, by fault, by schedule, by manual
  • Learning button1, for register
  • Hardware features
  • Serial port1, for debug
  • Electrical characteristics
  • Power supplyDC 7V to 24V
  • Operation humidity10% to 90%
  • Operation temperature-10°C to 55°C
  • Wireless transmission
  • RF frequency868 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1800 m
  • Wireless securityAES-128
  • Display
  • LEDs status3, register/signal (green/red), power (green), relay status (blue)
  • General
  • Installation methodWall-Mounting
  • Dimension(WxHxD)38 mm × 25 mm × 18 mm
  • Shell materialPlastic
  • ColorWhite
  • Weight28.5 g
  • Device management
  • Alarm input1 for tamper, NO/NC
  • Relay output1, NO/NC (0 to 36V DC, Max 5A)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Scenario setting
By alarm, by operation, by fault, by schedule, by manual
Learning button
1, for register
Hardware features
Serial port
1, for debug
Electrical characteristics
Power supply
DC 7V to 24V
Operation humidity
10% to 90%
Operation temperature
-10°C to 55°C
Wireless transmission
RF frequency
868 MHz
RF method
Two-way communication
RF modulation
2GFSK
RF distance
1800 m
Wireless security
AES-128
Display
LEDs status
3, register/signal (green/red), power (green), relay status (blue)
General
Installation method
Wall-Mounting
Dimension(WxHxD)
38 mm × 25 mm × 18 mm
Shell material
Plastic
Color
White
Weight
28.5 g
Device management
Alarm input
1 for tamper, NO/NC
Relay output
1, NO/NC (0 to 36V DC, Max 5A)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Specification
Software features
  • Scenario settingBy alarm, by operation, by fault, by schedule, by manual
  • Learning button1, for register
Hardware features
  • Serial port1, for debug
Electrical characteristics
  • Power supplyDC 7V to 24V
  • Operation humidity10% to 90%
  • Operation temperature-10°C to 55°C
Wireless transmission
  • RF frequency868 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1800 m
  • Wireless securityAES-128
Display
  • LEDs status3, register/signal (green/red), power (green), relay status (blue)
General
  • Installation methodWall-Mounting
  • Dimension(WxHxD)38 mm × 25 mm × 18 mm
  • Shell materialPlastic
  • ColorWhite
  • Weight28.5 g
Device management
  • Alarm input1 for tamper, NO/NC
  • Relay output1, NO/NC (0 to 36V DC, Max 5A)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
