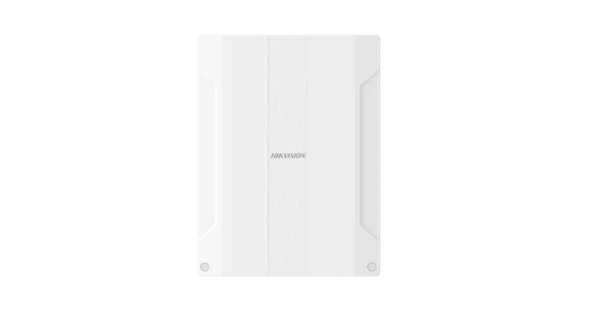

Multi IO transmitter

  • 868MHz two-way wireless communication
  • LED display, show the real status of device
  • With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
  • With two 12v power outputs, can be used to power up external wired detectors
  • Large space for back up storage battery
View Less
View more
74
  • people viewed this product today!
  • 30-day money back guarantee

Call for Availability

R1,940.00

Description

Specification

  • Software features
  • End of Line Resistance1k 2.2k 4.7k 8.2k NO/NC
  • Hardware features
  • Serial port1
  • Battery port1, 12 VDC input
  • Tamper-ProofFront and rear
  • Power switch1
  • Alarm input16
  • Alarm output2
  • Power Output2 (12v, total1A)
  • Electrical characteristics
  • Battery typeCompatible with 12v 7 Ah 150 × 64 × 94 mm
  • Power supply100-240VAC，30w
  • Operation humidity10%~90%
  • Operation temperature–10 ~ 40°C
  • Power consumptionBattery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
  • Battery life spanUp to 36 hours
  • Wireless transmission
  • RF frequency868MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1100m
  • Display
  • Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
  • General
  • Installation methodWall Mounting
  • Dimension(WxHxD)261*199*86.4mm
  • Shell materialPlastic
  • ColorWhite
  • Weight975 g (without battery) 3024g (with battery)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
End of Line Resistance
1k 2.2k 4.7k 8.2k NO/NC
Hardware features
Serial port
1
Battery port
1, 12 VDC input
Tamper-Proof
Front and rear
Power switch
1
Alarm input
16
Alarm output
2
Power Output
2 (12v, total1A)
Electrical characteristics
Battery type
Compatible with 12v 7 Ah 150 × 64 × 94 mm
Power supply
100-240VAC，30w
Operation humidity
10%~90%
Operation temperature
–10 ~ 40°C
Power consumption
Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
Battery life span
Up to 36 hours
Wireless transmission
RF frequency
868MHz
RF method
Two-way communication
RF modulation
2GFSK
RF distance
1100m
Display
Indicator
3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
General
Installation method
Wall Mounting
Dimension(WxHxD)
261*199*86.4mm
Shell material
Plastic
Color
White
Weight
975 g (without battery) 3024g (with battery)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Specification
Software features
  • End of Line Resistance1k 2.2k 4.7k 8.2k NO/NC
Hardware features
  • Serial port1
  • Battery port1, 12 VDC input
  • Tamper-ProofFront and rear
  • Power switch1
  • Alarm input16
  • Alarm output2
  • Power Output2 (12v, total1A)
Electrical characteristics
  • Battery typeCompatible with 12v 7 Ah 150 × 64 × 94 mm
  • Power supply100-240VAC，30w
  • Operation humidity10%~90%
  • Operation temperature–10 ~ 40°C
  • Power consumptionBattery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
  • Battery life spanUp to 36 hours
Wireless transmission
  • RF frequency868MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1100m
Display
  • Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
General
  • Installation methodWall Mounting
  • Dimension(WxHxD)261*199*86.4mm
  • Shell materialPlastic
  • ColorWhite
  • Weight975 g (without battery) 3024g (with battery)

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
