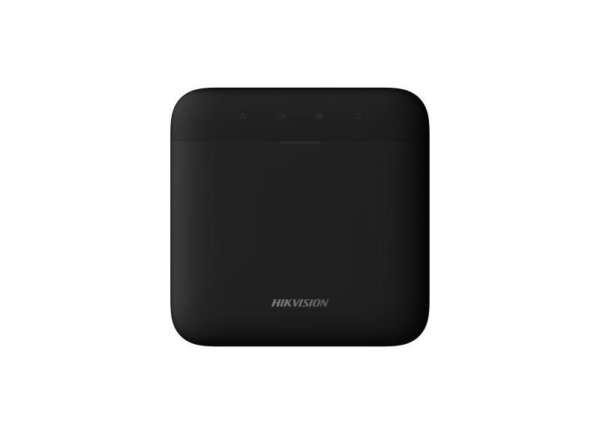

AX PRO (868MHz)

  • TCP/IP, Wi-Fi, and GPRS network
  • New generation wireless protocol: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
  • Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • 4520 mAh lithium backup battery
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
View Less
View more
134
  • people viewed this product today!
  • 30-day money back guarantee

R2,460.00

Description

Specification

  • Software features
  • Diagnostics via the APP or WebSupported
  • Installer1
  • Installer APP for programmingSupported
  • Web server for maintenance (offline configuration)Supported
  • Wi-Fi standardSupported
  • Arm modesAway/Stay
  • Firmware upgradeAPP/Web Portal
  • Admin1
  • Wired networkSupported
  • Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Forced arming with open zonesSupported
  • Memory log stored5000
  • User30
  • User APP for operatingSupported
  • Voice promptSupported
  • Area16
  • Automatic arm/disarm timersSupported
  • Hardware features
  • RS232 outputSupported
  • SIM slotSingle
  • GPRS on boardSupported
  • Loudspeaker built inSupported
  • Electrical characteristics
  • Battery typeBuilt in on board Battery Li
  • Power supplyBuilt in power supply
  • Operation temperature-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
  • Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
  • Wireless transmission
  • RF frequency868 Mhz
  • Wireless securityFrequency Hoping 128 AES Encryption
  • Display
  • LEDs statusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • General
  • Dimension(WxHxD)170.0 mm (6.7″) × 170.0 (6.7″) mm × 38.6 mm (1.5″)
  • Shell materialPlastic
  • ColorWhite
  • Weight557.5 g (19.7 oz)
  • Device management
  • Tag32
  • PIR camSupported
  • Zones64 (up to 48 PIRCAMs)
  • Keypad8 (including tag reader)
  • Wireless sounder4(2 internal+2 external)
  • Wireless repeater2
  • Keyfob32
  • Report method
  • ARC protocolSIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
Diagnostics via the APP or Web
Supported
Installer
1
Installer APP for programming
Supported
Web server for maintenance (offline configuration)
Supported
Wi-Fi standard
Supported
Arm modes
Away/Stay
Firmware upgrade
APP/Web Portal
Admin
1
Wired network
Supported
Programming tools
Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Forced arming with open zones
Supported
Memory log stored
5000
User
30
User APP for operating
Supported
Voice prompt
Supported
Area
16
Automatic arm/disarm timers
Supported
Hardware features
RS232 output
Supported
SIM slot
Single
GPRS on board
Supported
Loudspeaker built in
Supported
Electrical characteristics
Battery type
Built in on board Battery Li
Power supply
Built in power supply
Operation temperature
-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
Battery life span
Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless transmission
RF frequency
868 Mhz
Wireless security
Frequency Hoping 128 AES Encryption
Display
LEDs status
Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
Dimension(WxHxD)
170.0 mm (6.7″) × 170.0 (6.7″) mm × 38.6 mm (1.5″)
Shell material
Plastic
Color
White
Weight
557.5 g (19.7 oz)
Device management
Tag
32
PIR cam
Supported
Zones
64 (up to 48 PIRCAMs)
Keypad
8 (including tag reader)
Wireless sounder
4(2 internal+2 external)
Wireless repeater
2
Keyfob
32
Report method
ARC protocol
SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
For better user experience, we highly recommend you to update your device to the latest firmware asap.
