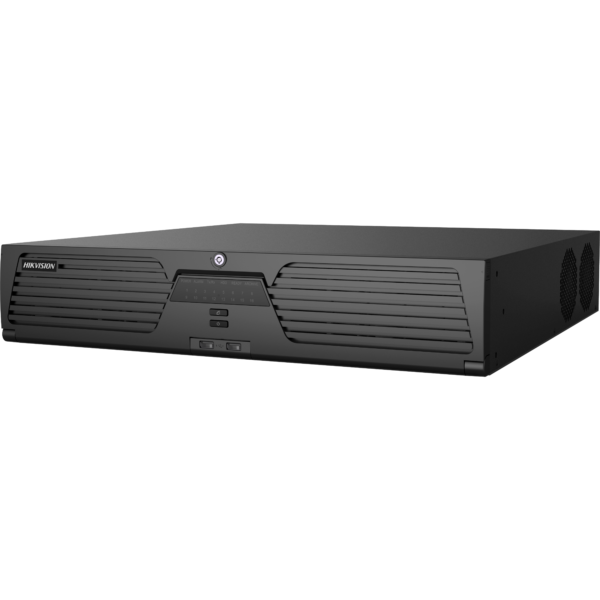

Name: 64-ch 2U 4K DeepinMind NVR - My Kleine Winkel
SKU: DS-9664NXI-I8/S(C)_C
Price: 32655.00 ZAR
Availability: InStock

Description

Perimeter Protection
Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video and Audio
IP Video Input64-ch,Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth320 Mbps
Outgoing Bandwidth256 Mbps
Incoming Bandwidth (RAID Mode)200 Mbps
Outgoing Bandwidth (RAID mode)200 Mbps
HDMI 1 Output1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output2-ch, RCA (Linear, 1 KΩ)
CVBS OutputN/A
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous playback16-ch
Decoding Capability1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Dual-streamSupport
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection128
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Serial InterfaceRS-232; RS-485; Keyboard
SATA8 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
eSATA1 eSATA interface
Alarm In/Out16/8
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 70 W
Working Temperature-10 to +55° C (+14 to +131° F)
Working Humidity10 to 90 %
Dimension (W × D × H)445 × 465 × 92 mm (17.5″× 18.3″ × 3.6″)
Weight≤ 10 kg (22 lb)

Certification
Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Perimeter Protection

Human/Vehicle Analysis

Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video and Audio

IP Video Input

64-ch,Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

256 Mbps

Incoming Bandwidth (RAID Mode)

200 Mbps

Outgoing Bandwidth (RAID mode)

200 Mbps

HDMI 1 Output

1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,

VGA 1 Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

Audio Output

2-ch, RCA (Linear, 1 KΩ)

CVBS Output

N/A

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+/MPEG4

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Synchronous playback

16-ch

Decoding Capability

1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Dual-stream

Support

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Remote Connection

128

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Serial Interface

RS-232; RS-485; Keyboard

SATA

8 SATA interfaces

Capacity

Up to 10 TB capacity for each HDD

eSATA

1 eSATA interface

Alarm In/Out

16/8

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 70 W

Working Temperature

-10 to +55° C (+14 to +131° F)

Working Humidity

10 to 90 %

Dimension (W × D × H)

445 × 465 × 92 mm (17.5″× 18.3″ × 3.6″)

Weight

≤ 10 kg (22 lb)

Certification

Obtained Certification

CE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Perimeter Protection

Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video and Audio

IP Video Input64-ch,Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth320 Mbps
Outgoing Bandwidth256 Mbps
Incoming Bandwidth (RAID Mode)200 Mbps
Outgoing Bandwidth (RAID mode)200 Mbps
HDMI 1 Output1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output2-ch, RCA (Linear, 1 KΩ)
CVBS OutputN/A
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous playback16-ch
Decoding Capability1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Dual-streamSupport
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection128
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Serial InterfaceRS-232; RS-485; Keyboard
SATA8 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
eSATA1 eSATA interface
Alarm In/Out16/8
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 70 W
Working Temperature-10 to +55° C (+14 to +131° F)
Working Humidity10 to 90 %
Dimension (W × D × H)445 × 465 × 92 mm (17.5″× 18.3″ × 3.6″)
Weight≤ 10 kg (22 lb)

Certification

Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
