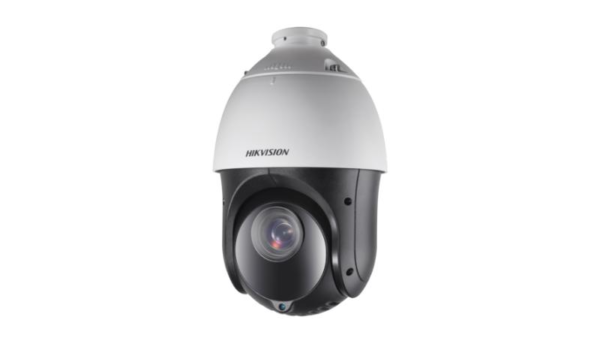

Name: 4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome - My Kleine Winkel
SKU: DS-2AE4225TI-D_C
Price: 5125.00 ZAR
Availability: InStock

Description

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter SpeedPAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & NightIR cut filter
Zoom25× optical, 16 × digital

Lens
Focal Length4.8 mm to 120 mm, 25 × optical
FOVHorizontal FOV: 57.6° to 2.5° (wide to tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical, wide to tele)

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 100 m

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
Tilt SpeedTilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional PanRotation speed can be adjusted automatically according to zoom multiples
Presets256
Patrol Scan10 patrols, up to 32 presets for each patrol
Pattern Scan5 patterns, record time over 10 minutes for each scan
Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status DisplayYes
Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off MemoryYes

Video
Frame Rate50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network
ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)

Image SettingsAGC, white balance
Wide Dynamic Range (WDR)≥ 120 dB
Image StabilizationEIS
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable privacy masks
Regional FocusYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power12 VDC, max. 20 W (IR: 7 W)
DimensionØ 164.5 × 295 mm (Ø 6.47″ × 11.61″)
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
LanguageEnglish

Approval
ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed

PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s

Day & Night

IR cut filter

Zoom

25× optical, 16 × digital

Lens

Focal Length

4.8 mm to 120 mm, 25 × optical

FOV

Horizontal FOV: 57.6° to 2.5° (wide to tele)

Focus

Auto, semi-auto, manual

Aperture

F1.6 to F3.5

Zoom Speed

Approx. 3.2 s (optical, wide to tele)

Illuminator

Supplement Light Type

Supplement Light Range

Up to 100 m

PTZ

Movement Range (Pan)

360° endless

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s

Tilt Speed

Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s

Proportional Pan

Rotation speed can be adjusted automatically according to zoom multiples

Presets

256

Patrol Scan

10 patrols, up to 32 presets for each patrol

Pattern Scan

5 patterns, record time over 10 minutes for each scan

Park Action

Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Status Display

Yes

Scheduled Task

Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None

Power-off Memory

Yes

Video

Frame Rate

50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network

Protocols

UTC protocol (or HIKVISION-C protocol in previous DVR)


Image Settings

AGC, white balance

Wide Dynamic Range (WDR)

≥ 120 dB

Image Stabilization

EIS

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

8 programmable privacy masks

Regional Focus

Yes

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

RS-485

Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General

Power

12 VDC, max. 20 W (IR: 7 W)

Dimension

Ø 164.5 × 295 mm (Ø 6.47″ × 11.61″)

Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less

Language

English

Approval

Protection

IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection

Camera

Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter SpeedPAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & NightIR cut filter
Zoom25× optical, 16 × digital

Lens

Focal Length4.8 mm to 120 mm, 25 × optical
FOVHorizontal FOV: 57.6° to 2.5° (wide to tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical, wide to tele)

Illuminator

Supplement Light TypeIR
Supplement Light RangeUp to 100 m

PTZ

Movement Range (Pan)360° endless
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
Tilt SpeedTilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional PanRotation speed can be adjusted automatically according to zoom multiples
Presets256
Patrol Scan10 patrols, up to 32 presets for each patrol
Pattern Scan5 patterns, record time over 10 minutes for each scan
Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status DisplayYes
Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off MemoryYes

Video

Frame Rate50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network

ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)


Image SettingsAGC, white balance
Wide Dynamic Range (WDR)≥ 120 dB
Image StabilizationEIS
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable privacy masks
Regional FocusYes

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General

Power12 VDC, max. 20 W (IR: 7 W)
DimensionØ 164.5 × 295 mm (Ø 6.47″ × 11.61″)
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
LanguageEnglish

Approval

ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
