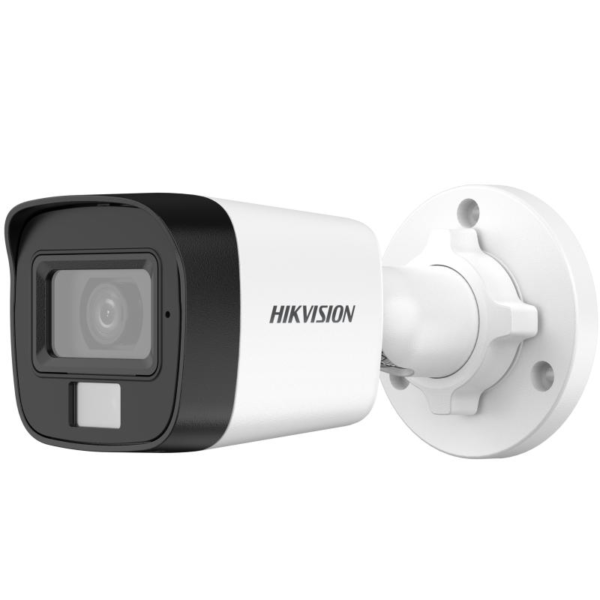

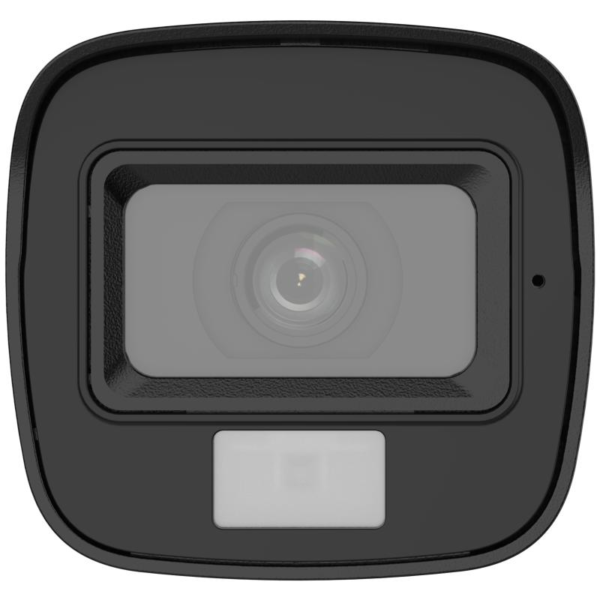

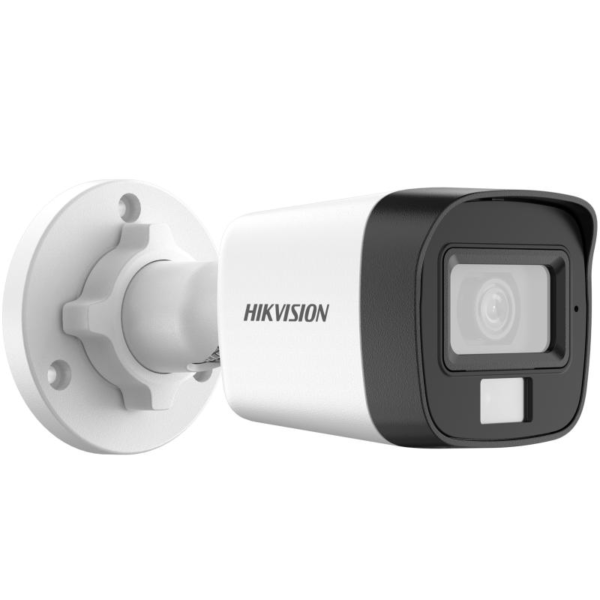

Name: 3K Smart Hybrid Light Audio Fixed Mini Bullet Camera 2.8MM - My Kleine Winkel
SKU: DS-2CE16K0T-LFS 2.8MM
Price: 595.00 ZAR
Availability: InStock

Description

Camera
Image Sensor 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
Lens MountM12

Microphone
Pickup DistanceIn a radius of 5 m
Amount1

Illuminator
Supplement Light RangeIR : Up to 30 m White Light : Up to 20 m
Supplement Light TypeSmart,IR,White Light

Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension138.8 mm × Ø70 mm (5.47″ × Ø2.76″)
WeightApprox. 270 g (0.60 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.3 W

Approval
ProtectionIP67

Camera

Image Sensor

3K CMOS

Max. Resolution

2960 (H) × 1665 (V)

Min. Illumination

0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°

Lens Mount

M12

Microphone

Pickup Distance

In a radius of 5 m

Amount

Illuminator

Supplement Light Range

IR : Up to 30 m White Light : Up to 20 m

Supplement Light Type

Smart,IR,White Light


Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC

Day/Night Mode

Auto/Color

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Metal

Dimension

138.8 mm × Ø70 mm (5.47″ × Ø2.76″)

Weight

Approx. 270 g (0.60 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.3 W

Approval

Protection

IP67

Camera

Image Sensor 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
Lens MountM12

Microphone

Pickup DistanceIn a radius of 5 m
Amount1

Illuminator

Supplement Light RangeIR : Up to 30 m White Light : Up to 20 m
Supplement Light TypeSmart,IR,White Light


Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

General

MaterialMetal
Dimension138.8 mm × Ø70 mm (5.47″ × Ø2.76″)
WeightApprox. 270 g (0.60 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.3 W

Approval

ProtectionIP67
