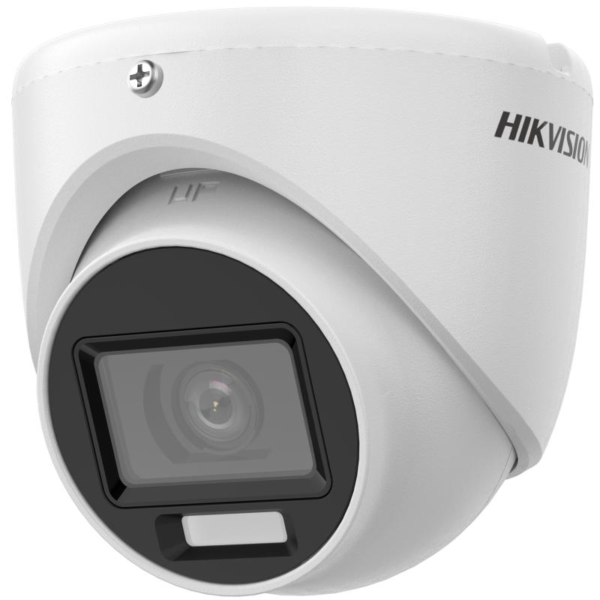

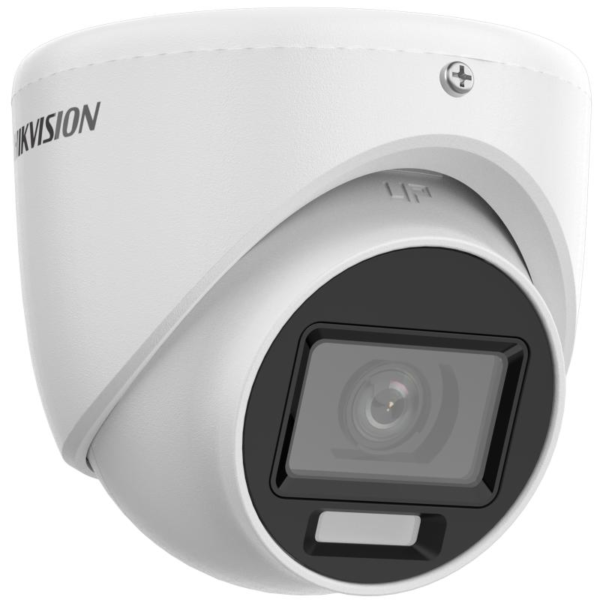

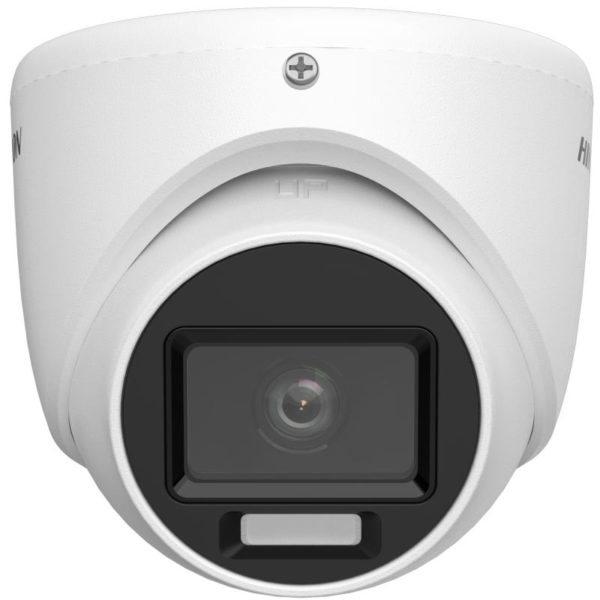

Name: 2MP Smart Hybrid Light Audio Indoor Fixed Turret Camera 2.8MM - My Kleine Winkel
SKU: DS-2CE76D0T-LMFS
Price: 455.00 ZAR
Availability: InStock

Description

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Lens MountM12

Microphone
Pickup DistanceIn a radius of up to 5 m
Amount1

Illuminator
Supplement Light RangeIR : Up to 30 m White Light : Up to 20 m
Supplement Light TypeSmart, IR, White Light

Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P @ 30 fps, 1080P @ 25 fps AHD: 1080P @ 30 fps, 1080P @ 25 fps CVI: 1080P @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes
Day/Night ModeAuto/Color

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension80 mm × Ø85.1 mm (3.1″ × Ø3.4″)
WeightApprox. 296 g (0.65 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.3 W

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Lens Mount

M12

Microphone

Pickup Distance

In a radius of up to 5 m

Amount

Illuminator

Supplement Light Range

IR : Up to 30 m White Light : Up to 20 m

Supplement Light Type

Smart, IR, White Light


Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P @ 30 fps, 1080P @ 25 fps AHD: 1080P @ 30 fps, 1080P @ 25 fps CVI: 1080P @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

White Balance

Auto/Manual

AGC

Yes

Day/Night Mode

Auto/Color

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Metal

Dimension

80 mm × Ø85.1 mm (3.1″ × Ø3.4″)

Weight

Approx. 296 g (0.65 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.3 W

Approval

Protection

IP67

Camera

Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Lens MountM12

Microphone

Pickup DistanceIn a radius of up to 5 m
Amount1

Illuminator

Supplement Light RangeIR : Up to 30 m White Light : Up to 20 m
Supplement Light TypeSmart, IR, White Light


Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P @ 30 fps, 1080P @ 25 fps AHD: 1080P @ 30 fps, 1080P @ 25 fps CVI: 1080P @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes
Day/Night ModeAuto/Color

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

General

MaterialMetal
Dimension80 mm × Ø85.1 mm (3.1″ × Ø3.4″)
WeightApprox. 296 g (0.65 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.3 W

Approval

ProtectionIP67
