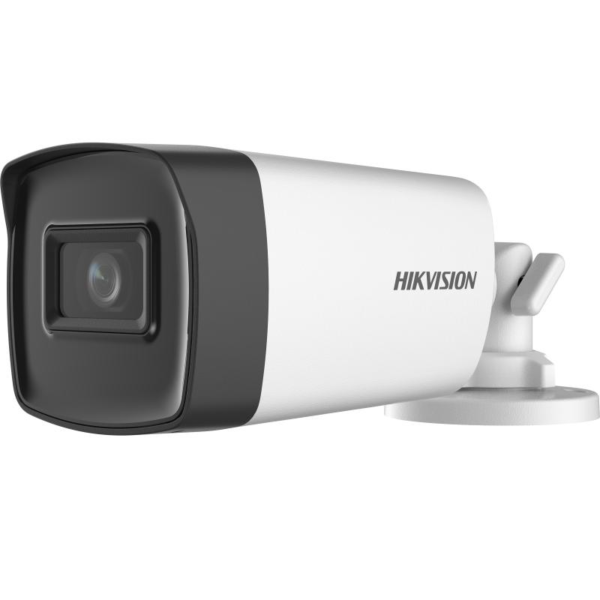

Name: 2 MP Fixed Mini Bullet Camera 3.6MM - My Kleine Winkel
SKU: DS-2CE16D0T-EXIF 3.6MM
Price: 375.00 ZAR
Availability: InStock

Description

Camera
Lens
Illuminator
Interface
General
Approval

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens
Lens Type2.8 mm, 3.6 mm Fixed Lens
Focal Length & FOV2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens MountM12

Illuminator
Supplement Light RangeUp to 20 m

Frame RateTVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Parameters SwitchSTD/HIGH-SAT
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto
Image EnhancementDWDR, BLC, Global
Noise Reduction2D DNR
Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
LanguageEnglish
Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
MaterialMetal
CommunicationHIKVISION-C
Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)
WeightApprox. 260 g (0.57 lb.)
Power12 VDC ± 25%, Max. 3.3 W

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

Lens Type

2.8 mm, 3.6 mm Fixed Lens

Focal Length & FOV

2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

Lens Mount

M12

Illuminator

Supplement Light Range

Up to 20 m


Frame Rate

TVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Parameters Switch

STD/HIGH-SAT

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto

Image Enhancement

DWDR, BLC, Global

Noise Reduction

2D DNR

Image Settings

Brightness, Mirror, Smart IR, Sharpness, AGC

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Language

English

Operating Condition

-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Material

Metal

Communication

HIKVISION-C

Dimension

138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)

Weight

Approx. 260 g (0.57 lb.)

Power

12 VDC ± 25%, Max. 3.3 W

Approval

Protection

IP67

Camera

Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

Lens Type2.8 mm, 3.6 mm Fixed Lens
Focal Length & FOV2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens MountM12

Illuminator

Supplement Light RangeUp to 20 m


Frame RateTVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Parameters SwitchSTD/HIGH-SAT
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto
Image EnhancementDWDR, BLC, Global
Noise Reduction2D DNR
Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

General

LanguageEnglish
Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
MaterialMetal
CommunicationHIKVISION-C
Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)
WeightApprox. 260 g (0.57 lb.)
Power12 VDC ± 25%, Max. 3.3 W

Approval

ProtectionIP67
