Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

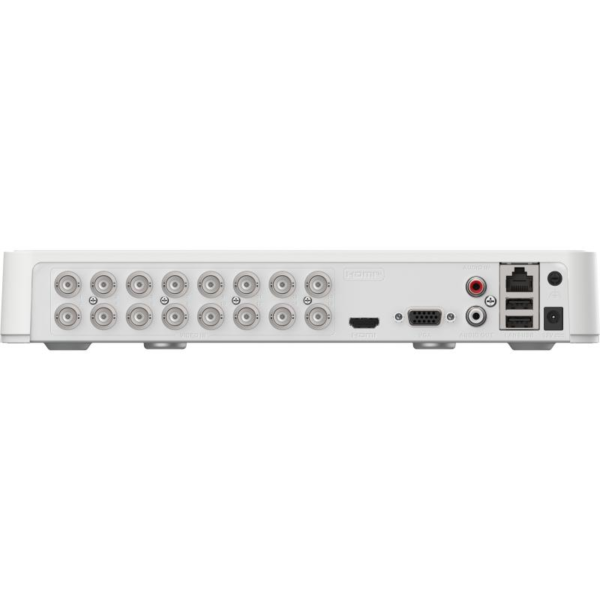

16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

1080p25, 1080p30, 720p25, 720p30

1080p25, 1080p30, 720p25, 720p30

1080p25, 1080p30, 720p25, 720p30

PAL/NTSC

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI/VGA simultaneous output

1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable

1-ch, RCA (Linear, 1 KΩ)

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

16-ch

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF

Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

32 Kbps to 4 Mbps

Support

Video, Video & Audio

G.711u

64 Kbps

96 Mbps

128

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF

1, RJ45 10M/100M self-adaptive Ethernet interface

1, SATA interface

Up to 6 TB capacity for each disk

2 × USB 2.0

12 VDC, 1.6 A

≤ 7 W (without HDD)

-10 °C to 55 °C (14 °F to 131 °F)

10% to 90%

285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)

≤ 1.8 kg (without HDD, 4.0 lb.)
