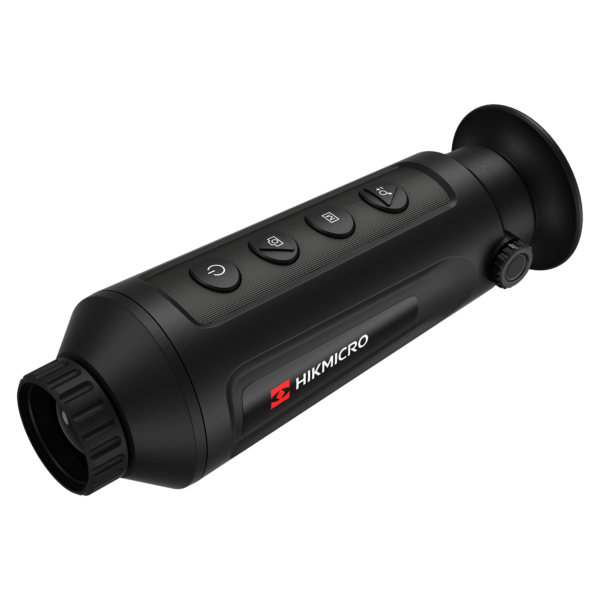

Handheld Thermal Monocular Camera

  • 384 × 288 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
  • 1280 × 960 resolution 0.4-inch LCOS display
  • Built-in rechargeable lithium battery
  • Up to 7.5 hours continuous running
  • Wi-Fi hot spot
  • Type-C Interface
View Less
View more

Call for Availability

R31,395.00

Description

Specification

  • Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution384×288
  • Pixel Interval12μm
  • Response Waveband8μm to 14μm
  • NETDLess than 35 mK (@25°C),F#=1.0
  • Focal Length25mm
  • Field of View10.5° × 7.9° (H × V)
  • ApertureF1.0
  • Magnification2.45 to 19.6
  • Digital Zoom1 ×, 2 ×, 4 ×, 8 ×
  • Image Display
  • Frame Frequency50 Hz
  • Monitor 0.4 inch, LCOS, 1280× 960
  • PalettesBlack Hot, White Hot, Red Hot, Fusion
  • FFC (Flat Field Correction) ModeAuto, Manual, External Correction
  • Smart Function
  • Wi-Fi Hot SpotYes
  • Standby ModeYes
  • System
  • StorageBuilt-in memory module (8 GB)
  • Record VideoYes
  • Capture SnapshotYes
  • Power Supply
  • Battery TypeLithium battery
  • Battery Operating Time7.5 hours continuous running with Wi-Fi hot spot function off (@25°C) 6 hours continuous running with Wi-Fi hot spot function on (@25°C)
  • Battery Capacity DisplayYes
  • General
  • Work Temperature/Humidity-20 °C to 55 °C (-4 °F to 131 °F)
  • Power5 VDC/2 A, 1.5 W, Type-C Interface
  • Protection LevelIP67
  • Dimension171 mm × 61 mm × 57 mm (6.73″ × 2.40″ × 2.24″)
  • Weight300 g (0.66 lb)

Specification

Specification
Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution384×288
  • Pixel Interval12μm
  • Response Waveband8μm to 14μm
  • NETDLess than 35 mK (@25°C),F#=1.0
  • Focal Length25mm
  • Field of View10.5° × 7.9° (H × V)
  • ApertureF1.0
  • Magnification2.45 to 19.6
  • Digital Zoom1 ×, 2 ×, 4 ×, 8 ×
Image Display
  • Frame Frequency50 Hz
  • Monitor 0.4 inch, LCOS, 1280× 960
  • PalettesBlack Hot, White Hot, Red Hot, Fusion
  • FFC (Flat Field Correction) ModeAuto, Manual, External Correction
Smart Function
  • Wi-Fi Hot SpotYes
  • Standby ModeYes
System
  • StorageBuilt-in memory module (8 GB)
  • Record VideoYes
  • Capture SnapshotYes
Power Supply
  • Battery TypeLithium battery
  • Battery Operating Time7.5 hours continuous running with Wi-Fi hot spot function off (@25°C) 6 hours continuous running with Wi-Fi hot spot function on (@25°C)
  • Battery Capacity DisplayYes
General
  • Work Temperature/Humidity-20 °C to 55 °C (-4 °F to 131 °F)
  • Power5 VDC/2 A, 1.5 W, Type-C Interface
  • Protection LevelIP67
  • Dimension171 mm × 61 mm × 57 mm (6.73″ × 2.40″ × 2.24″)
  • Weight300 g (0.66 lb)
