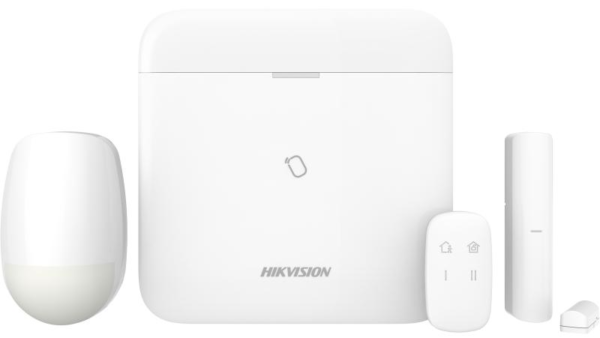

AX PRO Kit (868MHz)

  • · DS-PWA96-M-WE x 1
  • · DS-PKF1-WE x 1
  • · DS-PDP15P-EG2-WE x 1
  • · DS-PDMC-EG2-WE x 1
View Less
View more

R4,940.00

Description

Specification

  • Software features
  • Tag48
  • Area32
  • Zones96 (up to 48 PIRCAMs)
  • Onboard video clips4
  • Installer1
  • User46
  • Admin1
  • Voice PromptSupported
  • Loudspeaker built inSupported
  • Tag reader built inSupported
  • Memory Log stored5000
  • Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgradeAPP/Web Portal
  • Arm modesAway/Stay
  • Automatic Arm/Disarm TimersSupported
  • Forced Arming with Open ZonesSupported
  • Diagnostics via the APP or WebSupported
  • ARC protocolSIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operatingSupported
  • Installer APP for programmingSupported
  • Web server for maintenance (offline configuration)Supported
  • Hardware features
  • RS232 outputSupported
  • SIM slotDual
  • RF transmission
  • Two-way Wireless CommunicationSupport
  • RF Frequency868Mhz
  • Wireless SecurityFrequency Hoping 128 AES Encryption
  • 3/4G on boardSupported
  • Electrical characteristics
  • Power supplyBuilt in power supply
  • Battery typeBuilt in on board Battery Li
  • Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
  • Wireless transmission
  • Wired networkSupported
  • Wi-Fi StandardSupported
  • Display
  • LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • General
  • Operation temperature-10 °C to +55 °C
  • Shell materialPlastic
  • Dimension(WxHxD)170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
  • Weight557.5 g(19.7 oz)
  • Colorwhite
  • Device management
  • Keyfob48
  • Wireless sounder6 (3 internal+3 External)
  • Keypad8 (Including Tag reader)
  • Wireless Repeater4
  • Multi Transmitter6
  • PIR CamSupported

Specification

Specification
Software features
  • Tag48
  • Area32
  • Zones96 (up to 48 PIRCAMs)
  • Onboard video clips4
  • Installer1
  • User46
  • Admin1
  • Voice PromptSupported
  • Loudspeaker built inSupported
  • Tag reader built inSupported
  • Memory Log stored5000
  • Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgradeAPP/Web Portal
  • Arm modesAway/Stay
  • Automatic Arm/Disarm TimersSupported
  • Forced Arming with Open ZonesSupported
  • Diagnostics via the APP or WebSupported
  • ARC protocolSIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operatingSupported
  • Installer APP for programmingSupported
  • Web server for maintenance (offline configuration)Supported
Hardware features
  • RS232 outputSupported
  • SIM slotDual
RF transmission
  • Two-way Wireless CommunicationSupport
  • RF Frequency868Mhz
  • Wireless SecurityFrequency Hoping 128 AES Encryption
  • 3/4G on boardSupported
Electrical characteristics
  • Power supplyBuilt in power supply
  • Battery typeBuilt in on board Battery Li
  • Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless transmission
  • Wired networkSupported
  • Wi-Fi StandardSupported
Display
  • LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
  • Operation temperature-10 °C to +55 °C
  • Shell materialPlastic
  • Dimension(WxHxD)170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
  • Weight557.5 g(19.7 oz)
  • Colorwhite
Device management
  • Keyfob48
  • Wireless sounder6 (3 internal+3 External)
  • Keypad8 (Including Tag reader)
  • Wireless Repeater4
  • Multi Transmitter6
  • PIR CamSupported
