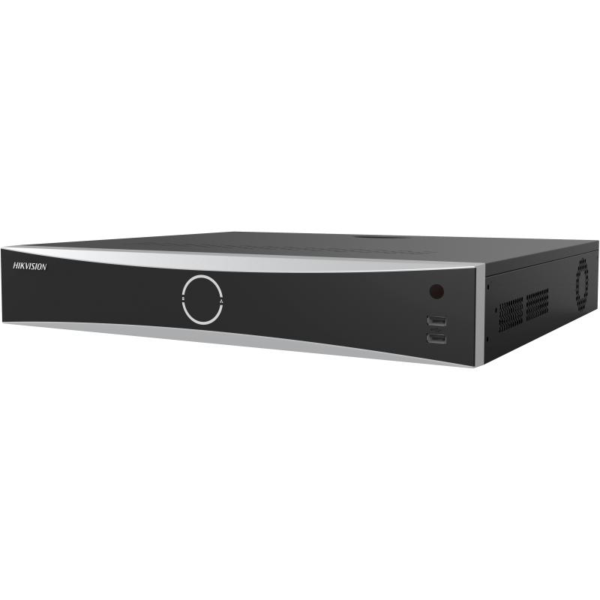

32-ch 1U AcuSense 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4-ch perimeter protection
  • Up to 4-ch facial recognition for video stream
  • Up to 8-ch facial recognition for face picture
  • Up to 32-ch IP camera inputs
  • Up to 32-ch 1080p decoding capability
  • Up to 8-ch IP speakers can be connected
View Less
View more

Call for Availability

R10,065.00

Description

Specification

  • Intelligent Analytics
  • AI by Device
  • AI by Camera
  • Engine
  • Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Attributes
  • Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
  • Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm
  • Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
  • Motion Detection 2.0
  • By Device16-ch
  • By Camera
  • Perimeter Protection
  • By DeviceUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total
  • By Camera
  • ANPR
  • By Camera
  • Vehicle Attributes
  • Plate Attributes
  • Video and Audio
  • IP Video Input16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
  • HDMI 2 Output1920 × 1080/60Hz,HDMI2/VGA independent output
  • VGA Output1-ch, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
  • Video Output Mode
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
  • Synchronous Playback16-ch
  • Live View Window Division1/2/4/6/8/9/16
  • Aux Port Window Division1/2/4/6/8/9/16
  • Decoding Capability16-ch @ 1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2
  • Network
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • API
  • Compatible Browser
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
  • Auxiliary Interface
  • Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
  • SATA4 SATA interfaces supporting hot-plug
  • CapacityUp to 10 TB capacity for each disk
  • eSATA1 eSATA interface
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Ctrl 12V
  • DC 12V
  • General
  • GUI Language
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 30 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Chassis19-inch rack-mounted 1.5U chassis
  • Dimension (W × D × H)445 × 400 ×75 mm ( 17.5″× 15.7″ × 3.0″)
  • Weight≤ 5.6 kg (12.3 lb)
  • Certification
  • Obtained Certification
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Specification

Reviews

There are no reviews yet.

Be the first to review “32-ch 1U AcuSense 4K NVR”
